P/NCA-1Z4-00M1WN-00

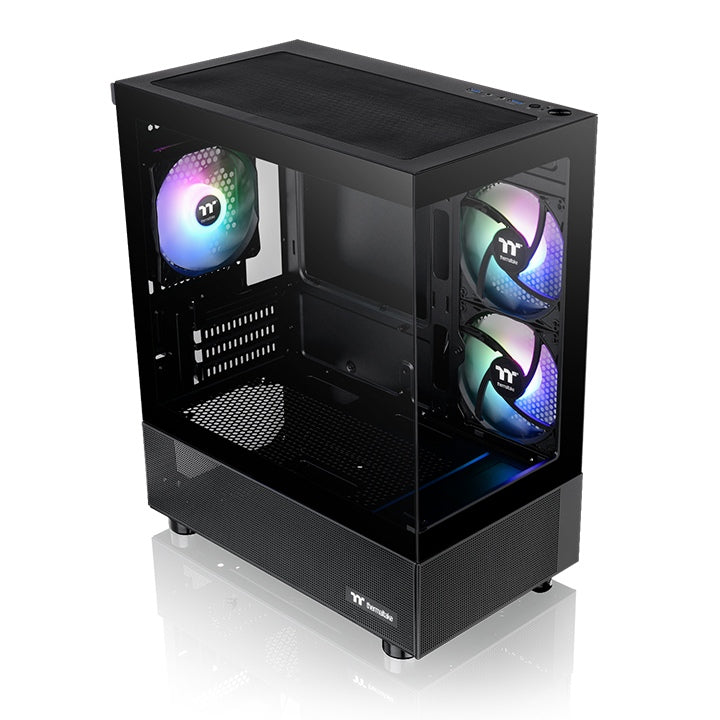

SeriesViewModelView 170 TG ARGBCASE TYPEMicro CaseDimension (H x W x D)438 x 212 x 377.5 mm
(17.24 x 8.35 x 14.86 inch)NET WEIGHT4.65 kg / 10.25 lbs.PANEL3mm Tempered Glass x 2
ColorBlackMATERIALSPCC
COOLING SYSTEMRight(intake):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2
Rear(exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Drive Bays1 x 3.5”, 2 x 2.5”
EXPANSION SLOTS4MOTHERBOARDS6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)I/O PortUSB 3.0 x 2, HD Audio x 1PSUStandard PS2 PSU (optional)FAN SUPPORTTop:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right:
2 x 120mm, 1 x 120mmRear: 1 x 120mm
Power Cover:
2 x 120mm, 1 x 120mmRADIATOR SUPPORTTop:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear:
1 x 120mmCLEARANCECPU cooler max height: 160mm
VGA max length: 340mm
PSU max length: 180mm
