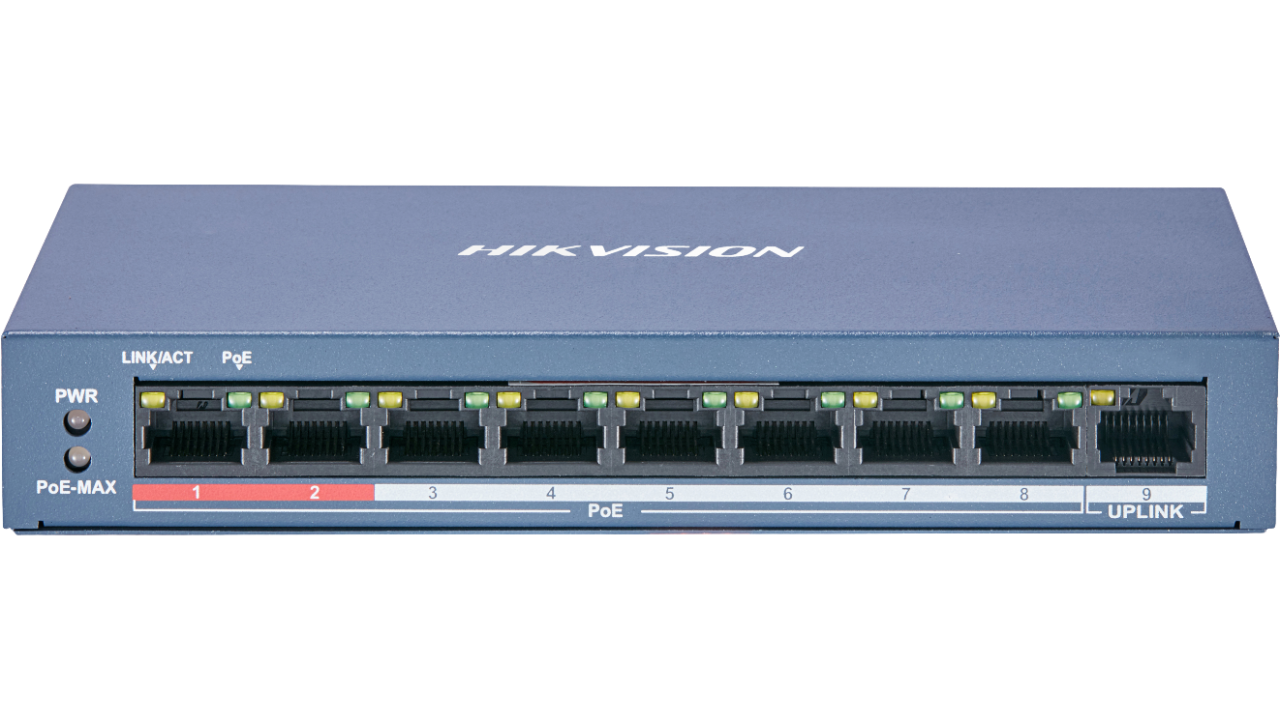

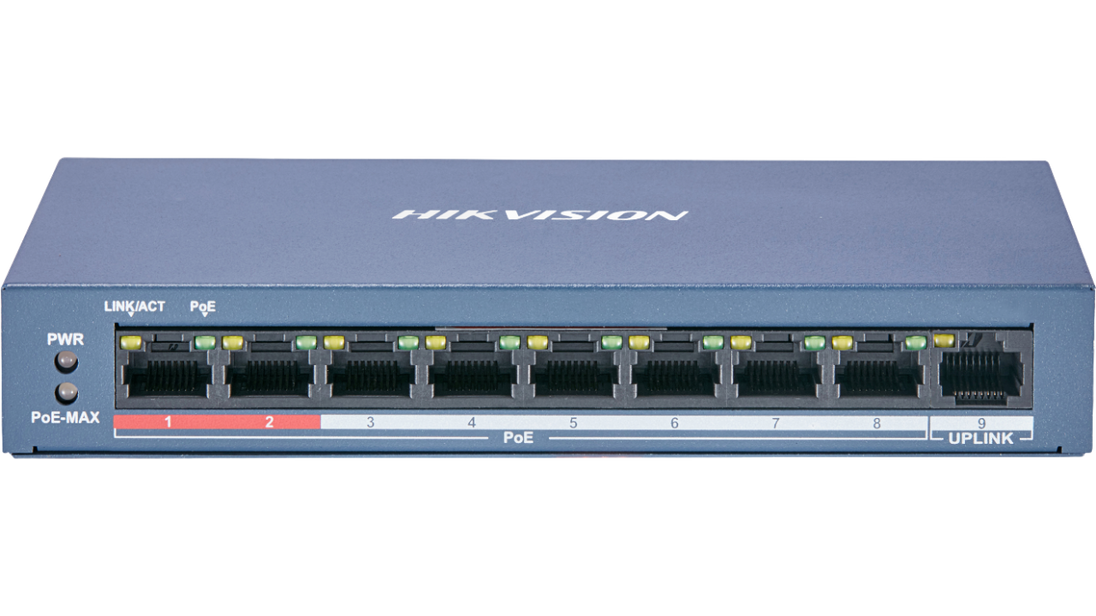

HikVision DS-3E0109P-EC-8 Port PoE Switch
HikVision DS-3E0109P-EC-8 Port PoE Switch
Regular price
210,000 MNT
Regular price
Sale price
210,000 MNT
Unit price
/
per
Couldn't load pickup availability
- Model-DS-3E0109P-E(C)
- Network parameters: Port number 1 × 10/100 Mbps Hi-PoE port, 7 × 10/100 Mbps PoE ports, and 2 ×10/100/1000 Mbps RJ45 ports
- Port type RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE
802.3at and IEEE 802.3az - Forwarding mode: Store-and-forward switching
- Working mode: Standard mode (default); Extend mode
- Ports for long-distance transmission Ports 1 to 8 MAC address table 16 K
- Switching capacity 5.6 Gbps
- Packet forwarding rate 4.166 Mpps
- Internal cache 4 Mbits
- PoE power supply
- PoE standard Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- Ports 2 to 8: IEEE 802.3af, IEEE 802.3at
- PoE power pin: Support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8
provide power supply simultaneously. - PoE port Ports 1 to 8
- Max. port power: Port 1: 60 W, Ports 2 to 8: 30 W
- PoE power budget 120 W
- Max. power consumption 130 W
